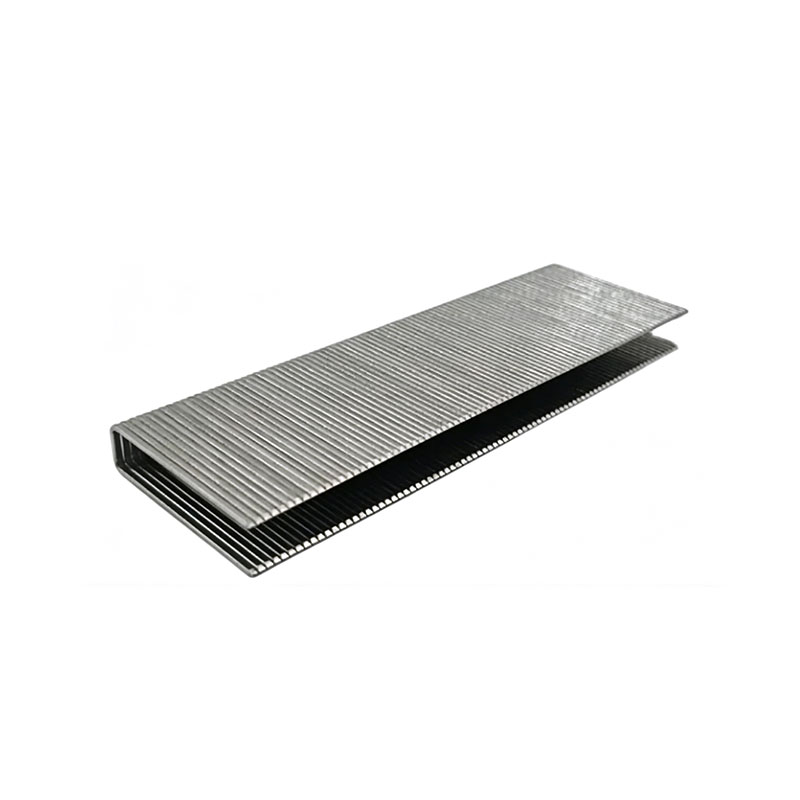

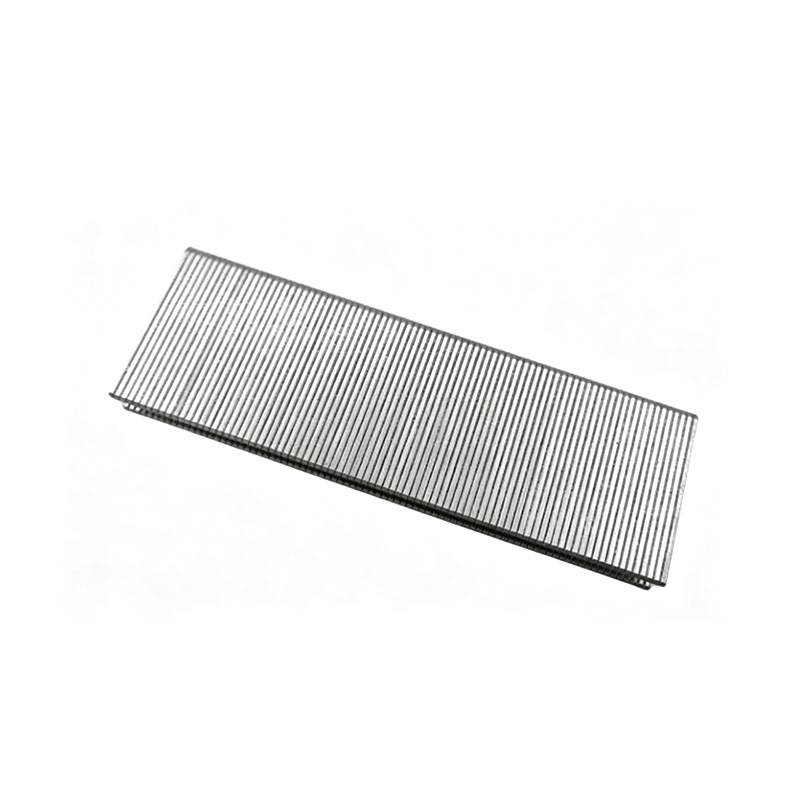

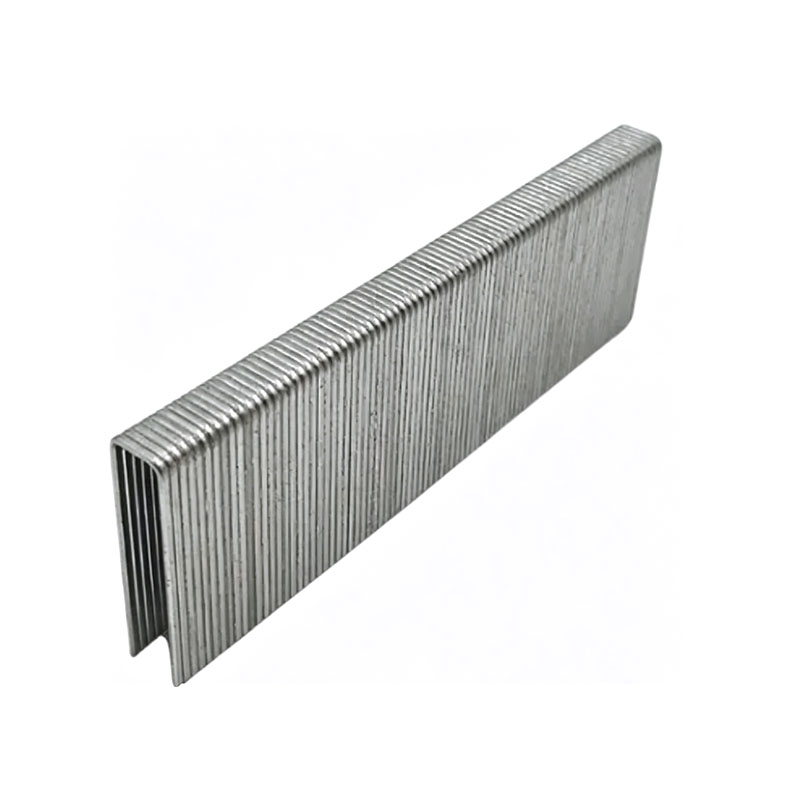

18GA 90 Series Staples

Model: 9010 9012 9014 9015 9016 9018 9019 9021 9022 9025 9028 9030 9032 9035 9038 9040 9045 9050

Product Overview

90 Series Medium-Heavy Duty Staples are a high-strength U-shaped nail product designed for heavy-duty fastening applications. Their thicker U-shaped structure and high-quality steel wire provide strong penetration and excellent bending resistance, making them suitable for joining various hard and thick materials such as solid wood, plywood, MDF (medium-density fiberboard), and construction formwork.

Key Specifications

These staples are manufactured using 18-gauge steel wire (wire diameter 1.25 mm), featuring a crown width of 5.7 mm, a wire diameter of 1.25 mm, and a leg thickness of 1.05 mm, conforming to 18GA standards. They are available in 18 leg length specifications ranging from 10 mm to 50 mm (10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 19 mm, 21 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm, 35 mm, 38 mm, 40 mm, 45 mm, 50 mm), meeting a wide range of fastening needs from thin sheets to thick materials.

Packaging Details

Each strip contains 100 staples, with 5,000 staples per box. Standard outer carton packaging varies by specification: 10 boxes per carton for specifications from 10 mm to 40 mm, and 6 boxes per carton for the 45 mm and 50 mm specifications. The packaging design offers flexibility, facilitating warehouse management and bulk usage.

Compatibility & Applications

This series of products is compatible with all staple guns suitable for the 90 series specifications and is widely used in heavy-duty fastening scenarios such as wooden frame assembly, pallet production, thick wood board connection, construction formwork, and large-scale packaging sealing. It is an ideal choice for professional woodworking and industrial fastening applications.
